Hydra-Mount Products
Metric and SpecialsSome applications require special machining
or are considered non-standard. Metric, clutch or adaptor plates
are just a few of the special mounts available. If you don’t see
what you need, contact us and we will help you review and
determine if one of our existing mounts can be modified to fit
your needs. Page 1
| 2
Engine Mounts for Metric Pumps "GM" Series
|
|
|
Mount Basic Data
Approximate Weight 1lb. 5oz.
Access Cover AC33 (1 required)
Maximum Coupling Dia. 2 3/4"
|
|
Bolt Circle 3.62 |
|
Pilot Dia. None |
Pilot Dia. 1.625 |
|
1 |
-237 |
-238 |
|
2 |
-239 |
-240 |
|
3 |
-241 |
-242 |
|
4 |
-243 |
-244 |
|
5 |
-245 |
-246 |
|
6 |
-247 |
-248 |
|
|
|
Mount Basic Data
Access Cover AC34 (2 required)
Maximum Coupling Dia. 3 1/8"
Approximate Weight 3lb. 5oz.
|
|
Bolt Circle 6.50 |
Bolt Circle 7.750 |
|
Pilot Dia. 5.75 |
Pilot Dia. 6.43 |
Pilot Dia. 6.43
7" Option
B&S 10
& 16 HP C.I.
Clearance Holes
5 3/8" B.C |
Pilot Dia. 7.00
Wisconsin TJD &
AENL
Clearance
Holes 6 1/4" B.C |
Pilot Dia. 7.00 |
|
1 |
-249 |
-250 |
-251 |
-252 |
-253 |
|
2 |
-254 |
-255 |
-256 |
-257 |
-258 |
|
3 |
-259 |
-260 |
-261 |
-262 |
-263 |
|
4 |
-264 |
-265 |
-266 |
-267 |
-268 |
|
5 |
-269 |
-270 |
-271 |
-272 |
-273 |
|
6 |
-274 |
-275 |
-276 |
-277 |
-278 |
|
|
|

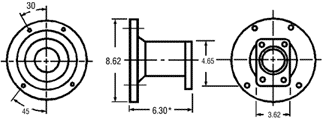

Mount Basic Data
Access Cover AC35 (2 required)
Maximum Coupling Dia. 3 1/8"
Approximate Weight 3lb. 10oz.
* Available in 5.43 Length
|
|
Bolt Circle 6.50 |
Bolt Circle 7.750 |
|
Pilot Dia. 5.75 |
Pilot Dia. 6.43 |
Pilot Dia. 6.43
7" Option
B&S 10
& 16 HP C.I.
Clearance Holes
5 3/8" B.C |
Pilot Dia. 7.00
Wisconsin TJD &
AENL
Clearance
Holes 6 1/4" B.C |
Pilot Dia. 7.00 |
|
1 |
-279 |
-280 |
-281 |
-282 |
-283 |
|
2 |
-284 |
-285 |
-286 |
-287 |
-288 |
|
3 |
-289 |
-290 |
-291 |
-292 |
-293 |
|
4 |
-294 |
-295 |
-296 |
-297 |
-298 |
|
5 |
-299 |
-300 |
-301 |
-302 |
-303 |
|
6 |
-304 |
-305 |
-306 |
-307 |
-308 |
|
|
|
Pump Flange Dimensions |
|
Order Code |
A |
B |
C |
D |
E |
|
1 |
26.5
1.04" |
72
2.83" |
52.4
2.08" |
25.4
1.0" |
M6 |
|
2 |
24.5
.96" |
73
2.87" |
56
2.20" |
30
1.18" |
M6 |
|
3 |
32.2
1.27" |
96.2
3.78" |
71.5
2.81" |
36.5
1.43" |
M8 |
|
4 |
14.3
.56" |
60.4
2.38" |
60
2.36" |
50
1.97" |
M8 |
|
5 |
34.5
1.36" |
100
3.94" |
72
2.83" |
80
3.15" |
M8 |
|
6 |
32.2
1.27" |
46.2
3.78" |
71.5
2.81" |
36.5
1.43" |
M8 |
 |
